1. Main processor: ARM11
2. Pixels: 200W
3. Sensor: 1/2.9
4. Image compression: H.264
5. Viewing angle: 80 degrees horizontally, 58 degrees vertically, 98 degrees diagonally
6. Resolution: 1080P (1920×1080), 720P (1280×720), VGA (640×360)
7. Image frame rate: 15fps-25fps
8. Infrared mode: automatic
9. Night vision distance: 15 meters
10. Minimum illumination: 0.01Lux/F1.2
11. Power supply DC: 5V/1.2A
12. Working temperature: -10 degrees Celsius to 50 degrees Celsius
13. Working humidity: 10% to 90%RH
14. Support AI automatic motion tracking, AI human detection
15. Built-in microphone and speaker, support two-way audio
16. Support wireless 2.4G IEEE 802.11 b/g/n, support WEP, WPA and WPA2 encryption
17. Application system: iOS and Android
18. Storage: MicroSD card up to 128GB (not included in this product)
19. AP hotspot: Support AP hotspot mode, the camera can be directly connected to the mobile phone without a router
20. TF card: Support 128GB TF card for recording, playback and downloading
21. Privacy protection: The system defaults to the first user as the administrator, and other users need to be authorized by the administrator to access the camera
22. Protocol: Support onvif protocol, can be used with NVR
Specification:
|
General
|
| Performance |
Night Vision, Two Way Audio |
| Memory |
up to 128GB (not included) |
| Power Plug |
US, EU, UK Plug Optional |
|
|
Network
|
| Wireless |
2.4GHz, IEEE 802.11 a/b/g/n |
| WIFI Encryption |
WEP, WPA, WPA2 |
|
|
System / Hardware
|
| Sensor Size |
1/2.9 inch Progressive Scan |
| Effective Pixel |
1280(H)×720(V) , 1920(H)×1080(V) |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
90 degree |
| Minimum Illumination |
B/W: 0.01Lux/F1.2 |
|
|
Media Format
|
| Video Compression Format |
H.264 |
|
|
Physical Environment
|
| Operate Temperature |
-10 to 50 Degree Celsius |
| Working Humidity |
10 to 90 percent |
|
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |

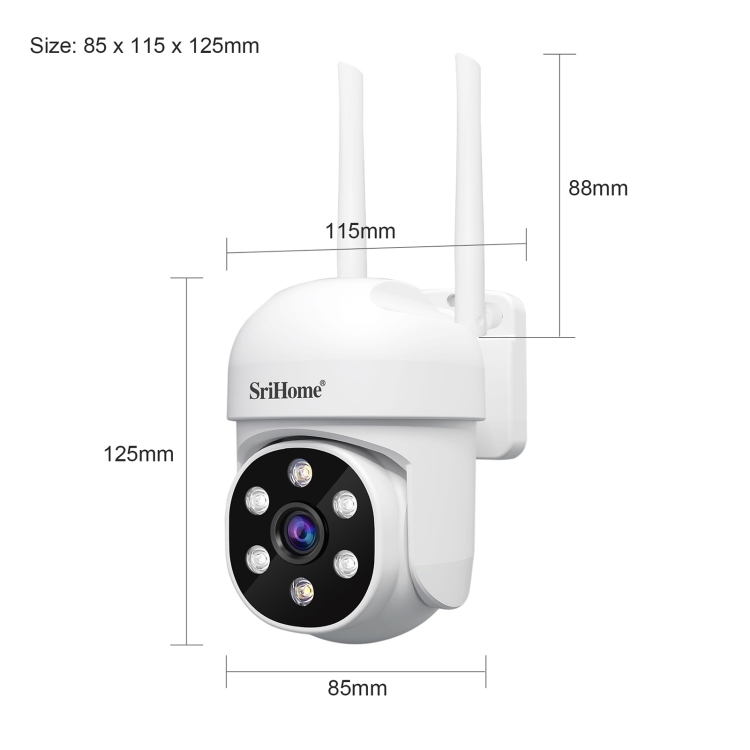

17cm * 13cm * 9cm / 6.69inch * 5.12inch * 3.54inch
|
| Carton Weight |
19.00kgs / 41.89lb
|
| Carton Size |
53cm * 47cm * 41cm / 20.87inch * 18.5inch * 16.14inch
|
| Loading Container |
20GP: 261 cartons * 45 pcs = 11745 pcs
40HQ: 606 cartons * 45 pcs = 27270 pcs
|
|
